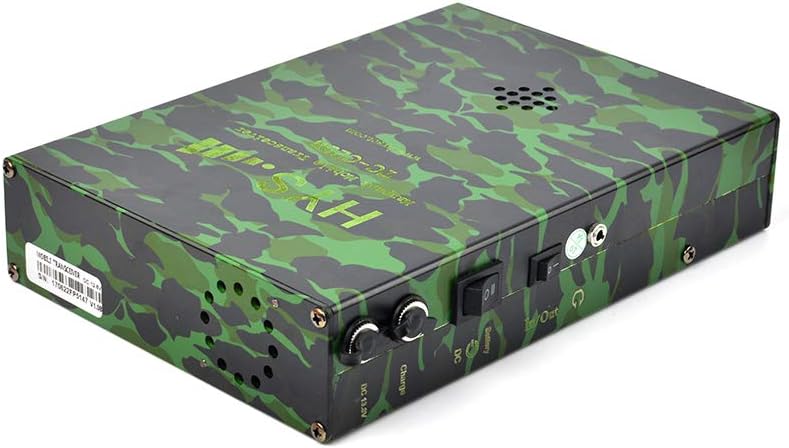

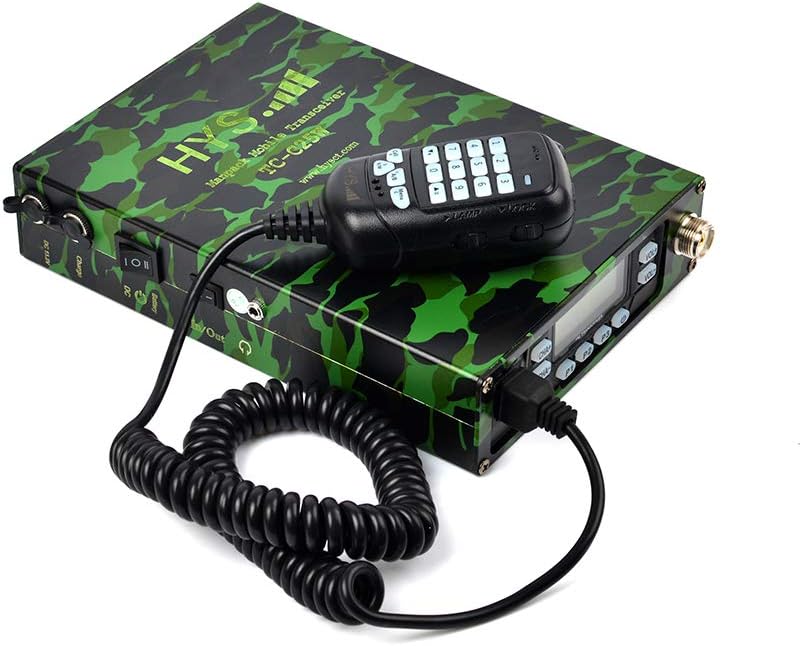

Camouflage Mobile Radio Ham Transceiver with Tri Band Telescopic Antenna H6343
Camouflage Mobile Radio Ham Transceiver with Tri Band Telescopic Antenna H6343
Features CTCSS, DCS, ANI, DTMF, 2-Tone/5-Tone, Alphanumeric Display, 199 channels & more.
Transmits on VHF and UHF (AM mode selectable on VHF receive freqs for AirBand recption)
Portable Mobile Transceiver. Built-in 12000mAh Battery, You just need to charge it for 6 hours and it will continuously work for over 4 hours or standby for over 12 hours.You can take out in backpack or any other convenient bags out and take a trip. The communication distance about 10-15 miles.

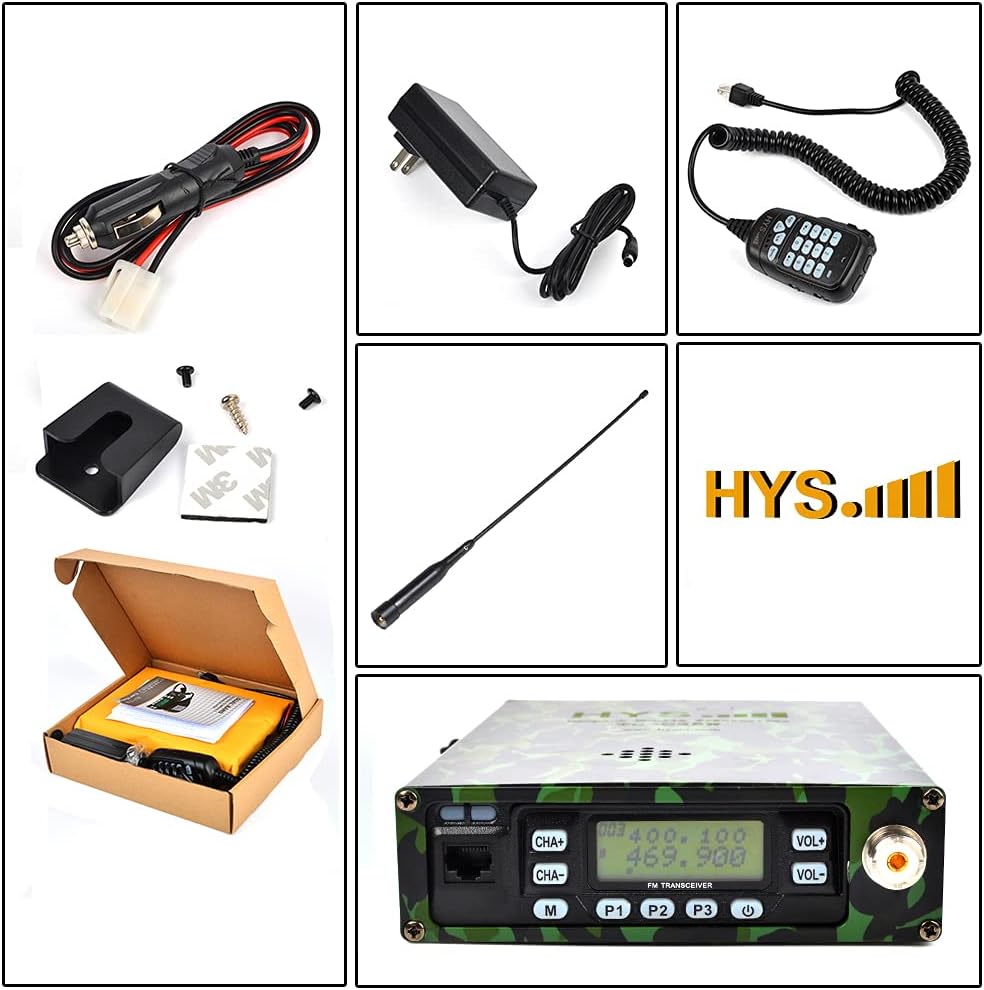

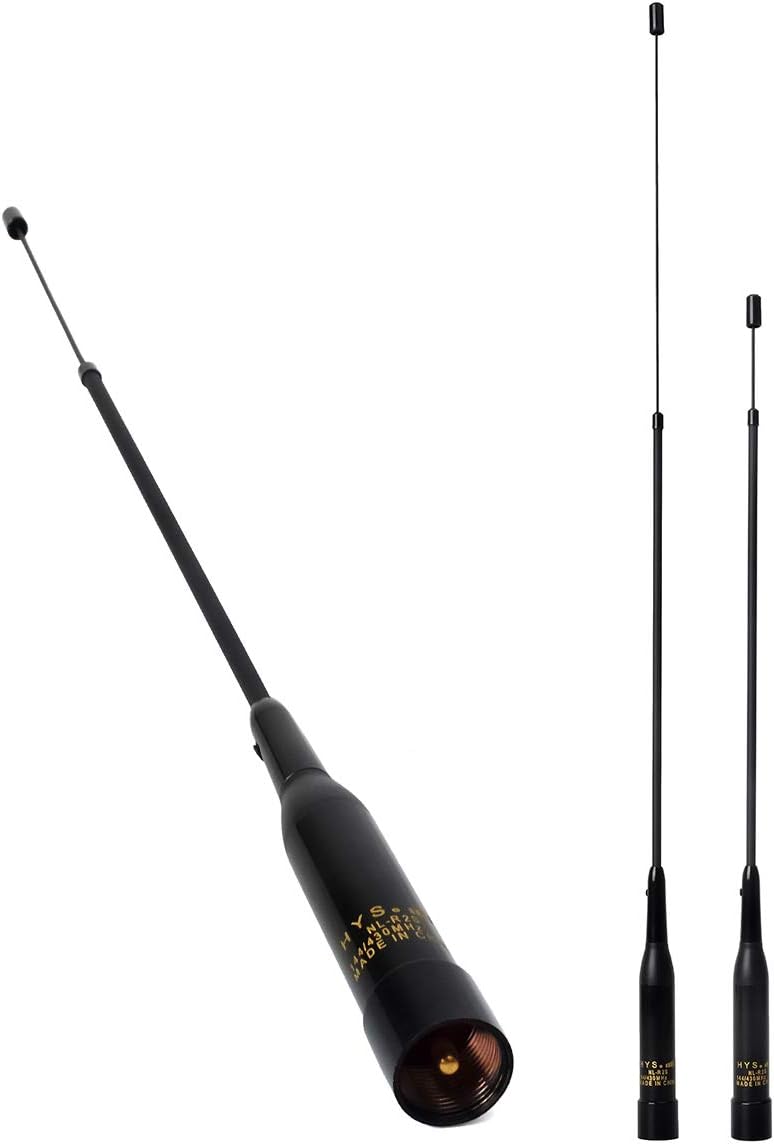

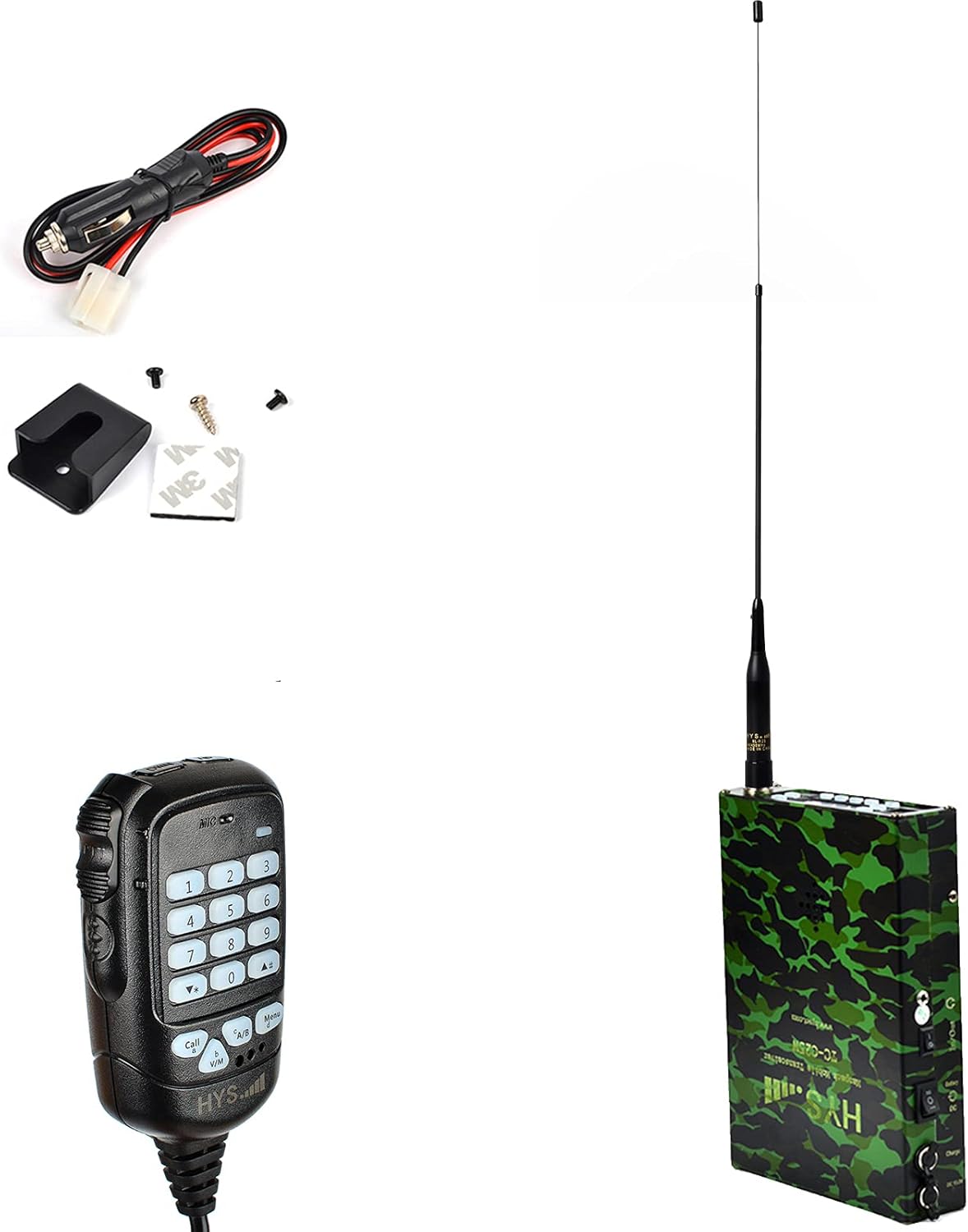

Package includes:1* TC-C25W Mobile Transceiver (with battery 12000 Mah )+1* DTMF Microphone+1*12.6V Adaptor+1*Power line+1* USER Manual+1* HYS-R2S Telescopic Dual Band Antenna+ 1*DC Power Cable FCC IDENTIFIER: 2AC2Z-898UV
SPECIFICATION:
Radioator Fan
Mini size:210*152*44mm
Frequency Range: UHF VHF
Channel Capacity: 199
Battery capacity: 12000 mAh
can continuously working hour for: Approx 4 Hour
The Standby Time：Approx 8 Hours
Operation Mode: Simplex
Modulation Limitation: ≤±5KHz
Spurious Radation: 60dB
TX Current: 1A/1.8A
Frequency Stability: ±2.5PPM
RX Sensitivity: ＜0.18μV
Modulation Type: F3E
Audio Power: ≥400mW
Standby Current: 78mA(Power saving mode is 30mA)
Rated Voltage: 13.8V
More Functions
Dual band
Dual Reception/Dual Display
Multi silent mode (QT/QTADT/QTXDT) 107 groups DCS/58 groups CTCSS
DTMF encoding and DTMF decoding
PTT ID(Voice broadcast PTT ID)
All calls, group calls and selective calls
Monitor, RX Inhibit, RXTX Inhibit and Emergency Alarm
FM Radio
Scan/Scan add
Channel name edit available
199 memory channels
High/Low power
APO(Auto Power Off)
TOT(Time-out timer)
Font Set(Big/Small)
VOX(Level adjustable)
Busy channel lockout
Keyboard lock (Auto/Manual)
Multi scan mode (TO/CO/SE)
Channel steps (2.5K/5K/6.25K/10K/12.5K/25K)
Wide/Narrow band selection (25KHz/12.5KHz)
TX Stop
Talk Around
Beat frequency
Reverse frequency function
1750Hz burst tone
Four key programmable
Lease Function(can program the radio within a user specified date range)
